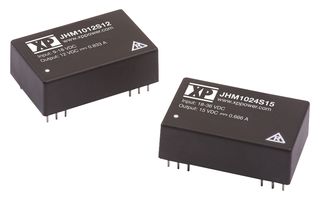

JHM1024S12 - DC/DC pretvornik 18-36V 12V 10W, XP Power

DC/DC, 10W, 12V, MEDICAL, DIP-24
DC / DC Converter Type: Isolated POL
DC / DC Converter Output Type: Fixed
Input Voltage DC Min: 18V
Input Voltage DC Max: 36V
No. of Outputs: 1
Output Voltage Nom.: 12V
Output Current Max: 833mA
Output Power Max: 10W
DC / DC Converter Mounting: Through Hole
Depth: 31.75mm
Width: 20.32mm
Height: 12.7mm
Approvals / Standards: CSA 22.2 No. 60601, IEC 60601, UL 60601
Approval Bodies: CSA, IEC, UL
Isolation Voltage: 4kV
Output Current: 833mA
Output Voltage: 12V
Power Rating: 10W
Supply Voltage: 24
Carinska stopnja: 85044090
